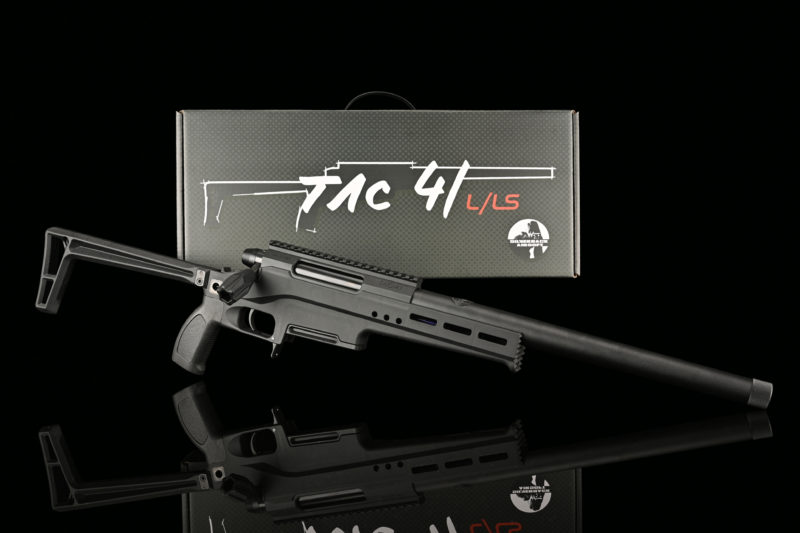

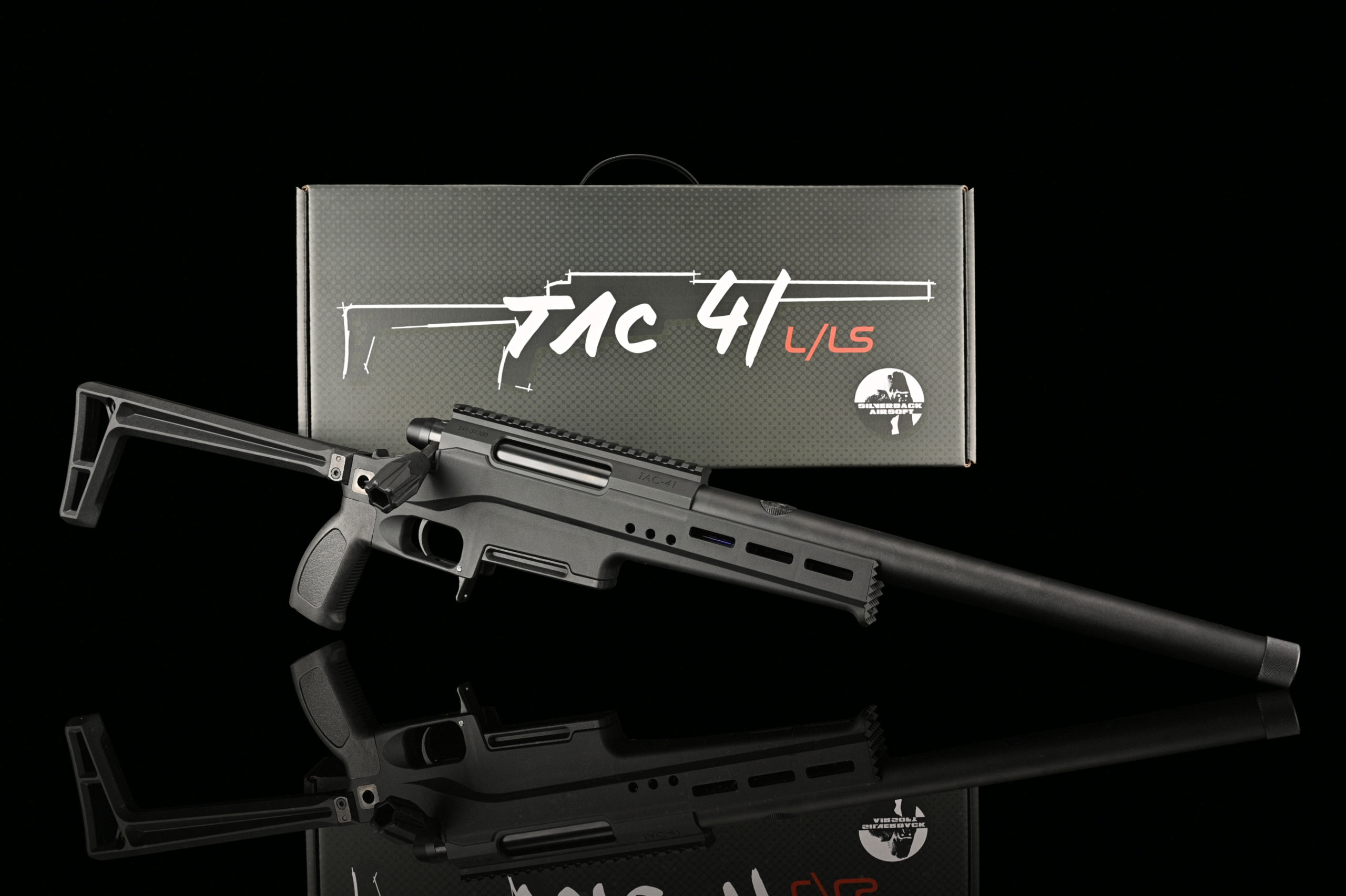

TAC-41 L

SKU: SBA-BLT-32 Categories: , Tag:

Description

ETA : SPRING 2024

General:

  • Size: 91.6 cm minimum
  • Minimum weight:  2.08kg (with magazine)
  •  Fully ambidextrous design (bolt handle, magcatch, safety, hop-up adjustment)

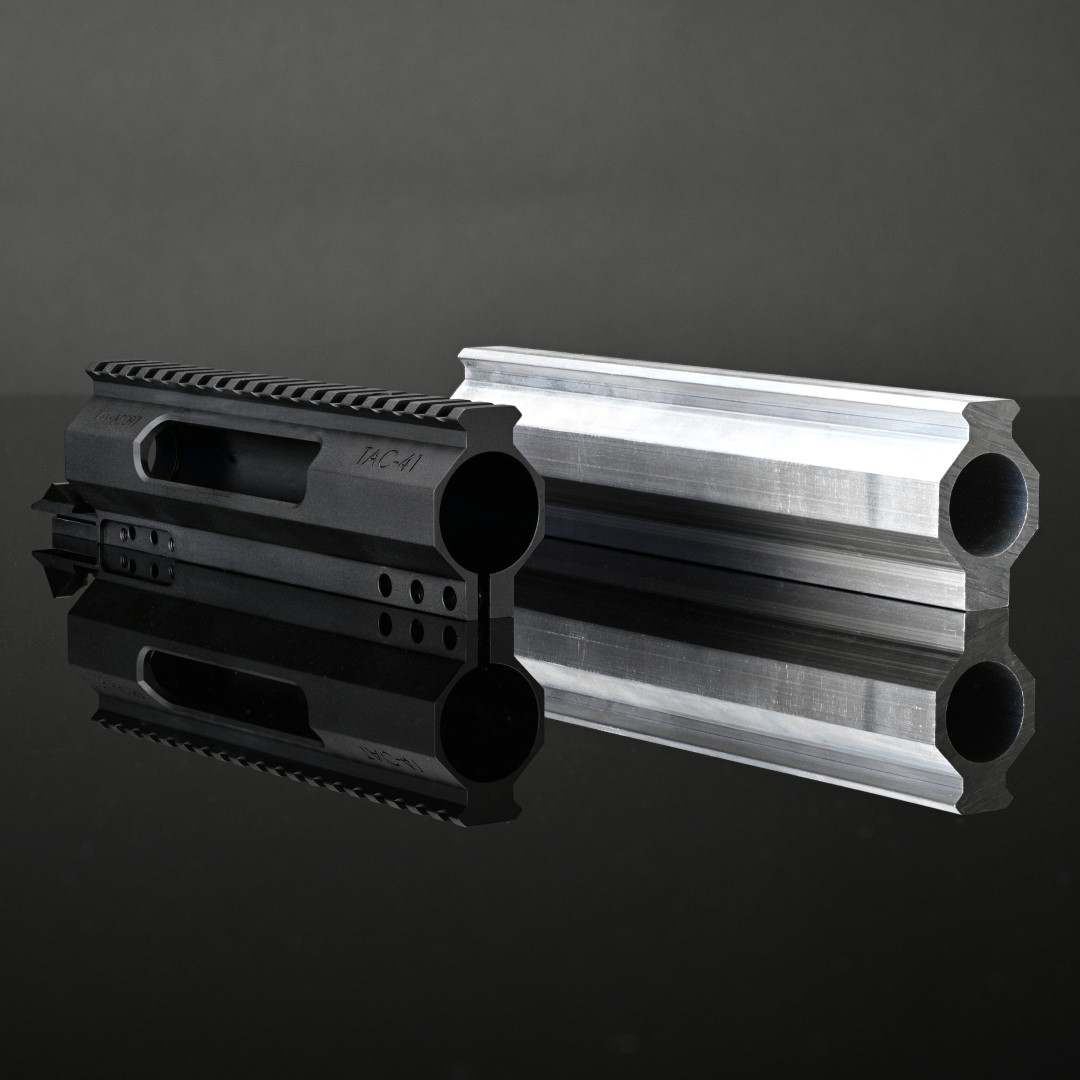

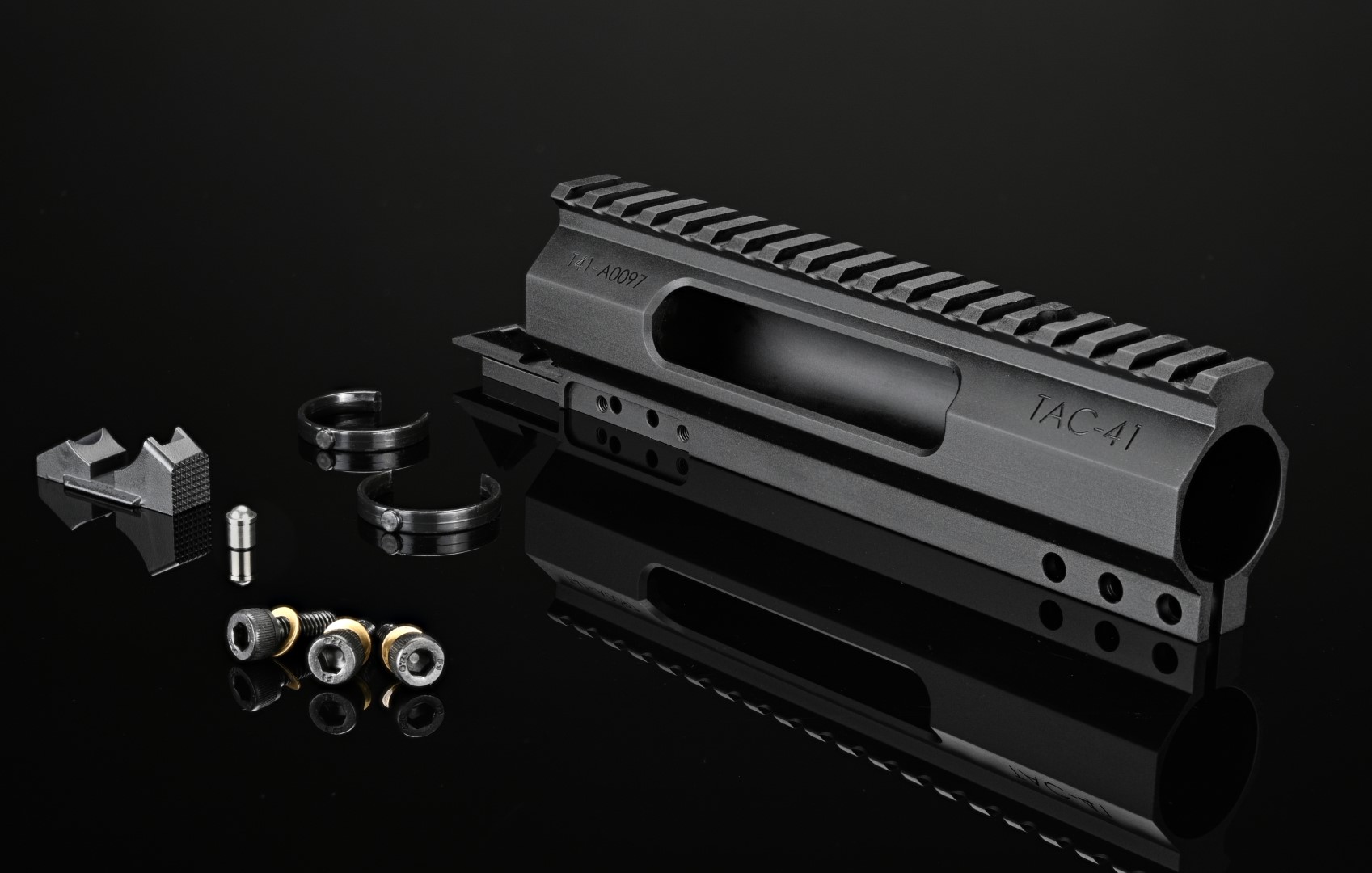

Receiver:

  • 6000 series CNC Aluminium receiver with unique serial number
  • POM sliding rings
  • High Picatinny rail for mask users

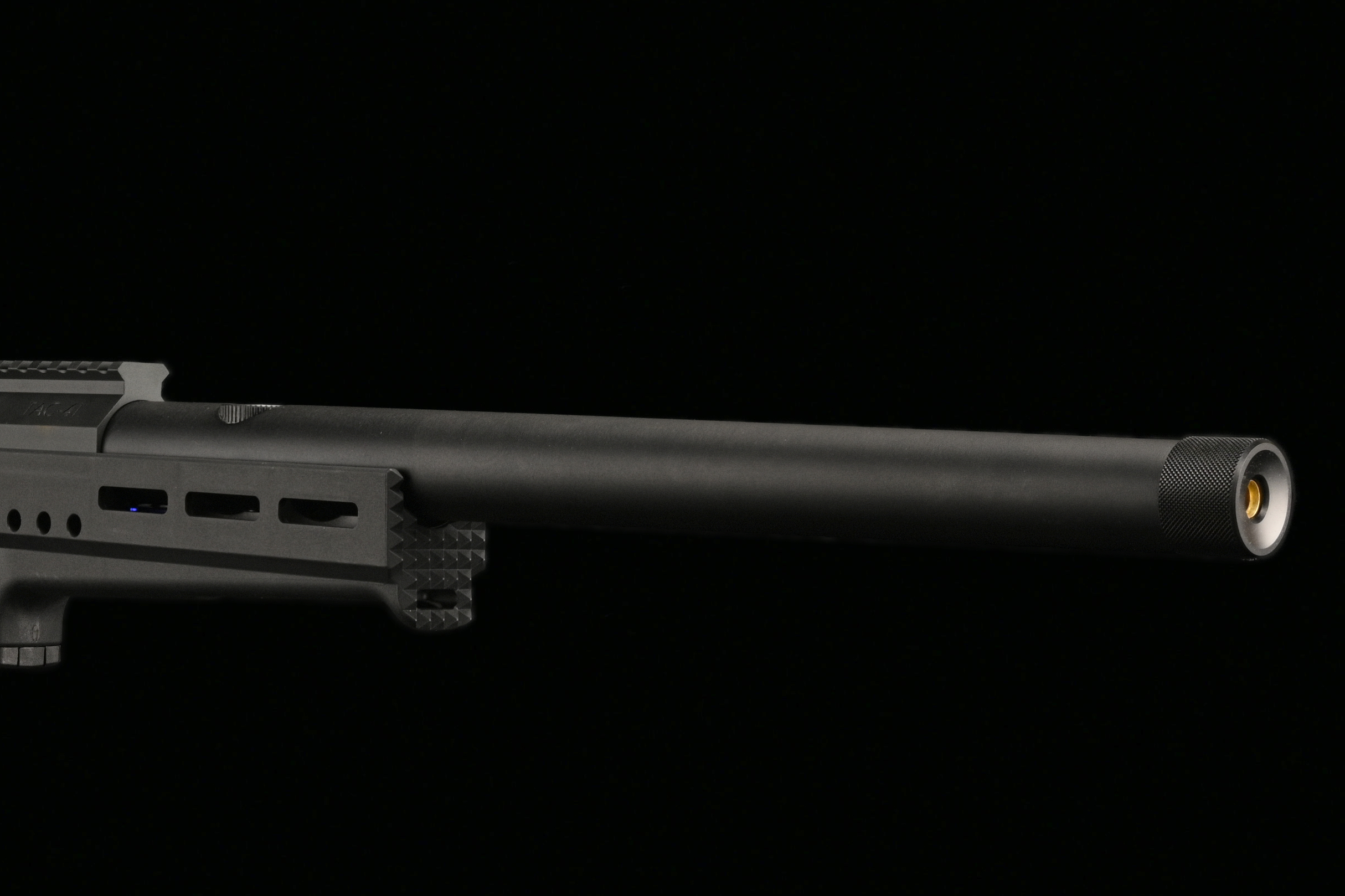

Barrel:

  • Tapered Aluminium outer barrel
  • Barrel length: 330 mm, 6.05 brass AEG type
  • Quick change barrel (bayonet lock + clamp into the receiver)
  • M24x1 threaded outer barrel (compatible with any M24 x1 muzzle device)
  • 3 barrels spacers



Magazine / feeding system:

  • Magazine capacity: 48 bbs
  • Feeding ramp buffer capacity: 20 bbs
  • Quick release button inside the magwell to empty the feeding tube.
  • Steel magcatch, AK style.



Bolt:

  • Bolt usable volume: 41 cc
  • Stainless steel cylinder with PVD coating (Aluminium Titanium Nitride Physical Vapor Deposition)
  • Stainless steel cylinder head (removable with the tool integrated in cheek pad adjustment knob)
  • SRS piston with specific 90° piston end (steel)

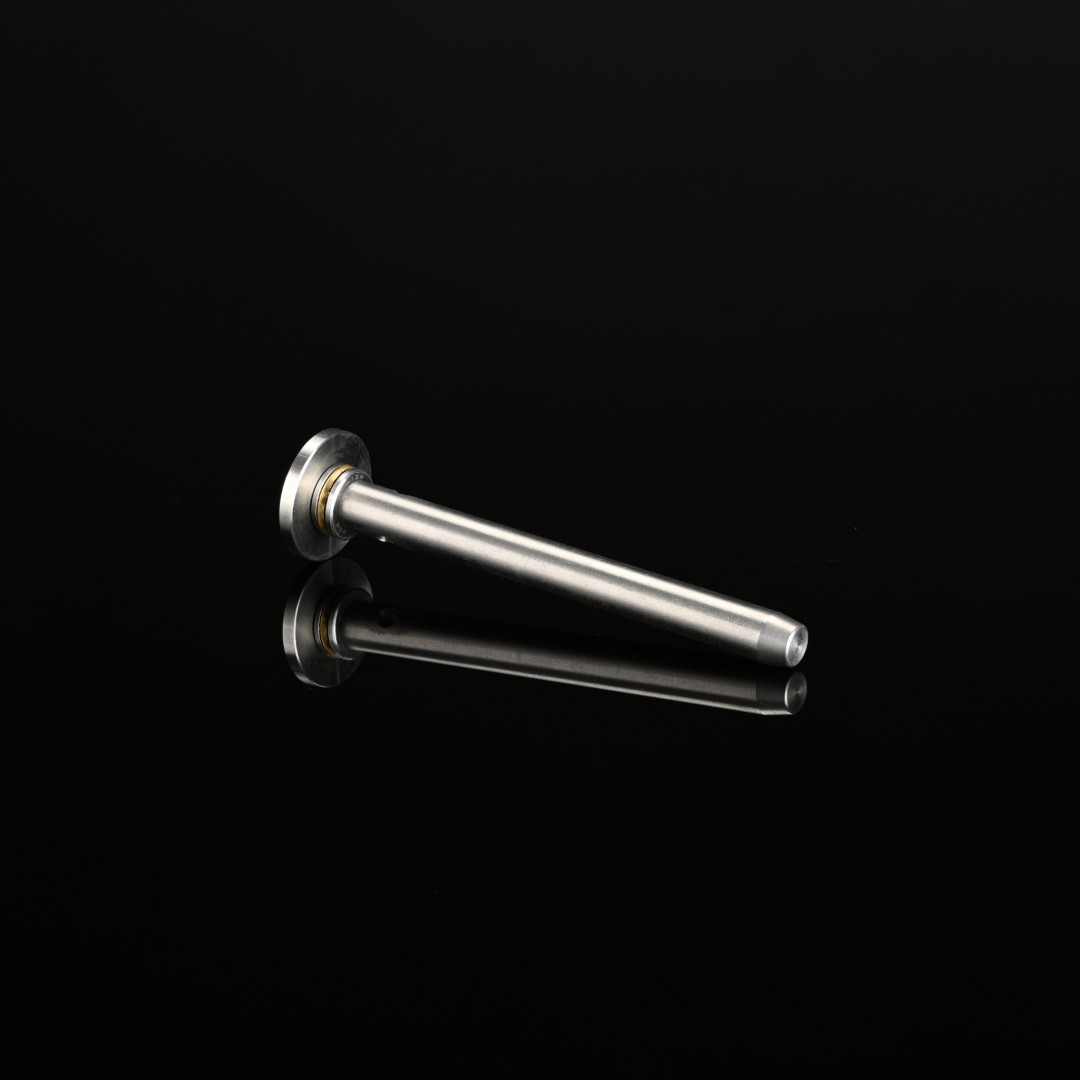

  • Stainless steel spring guide with thrust bearing
  • APS 13 mm spring compatible (75 Newton stock spring,  initial muzzle energy around 1.5J, with 0.2g bbs, minimum hop up setting), Warning: Not compatible with  SBA-SPR-08 (95 Newton spring).
  • Quick change bolt
  • 474 grams

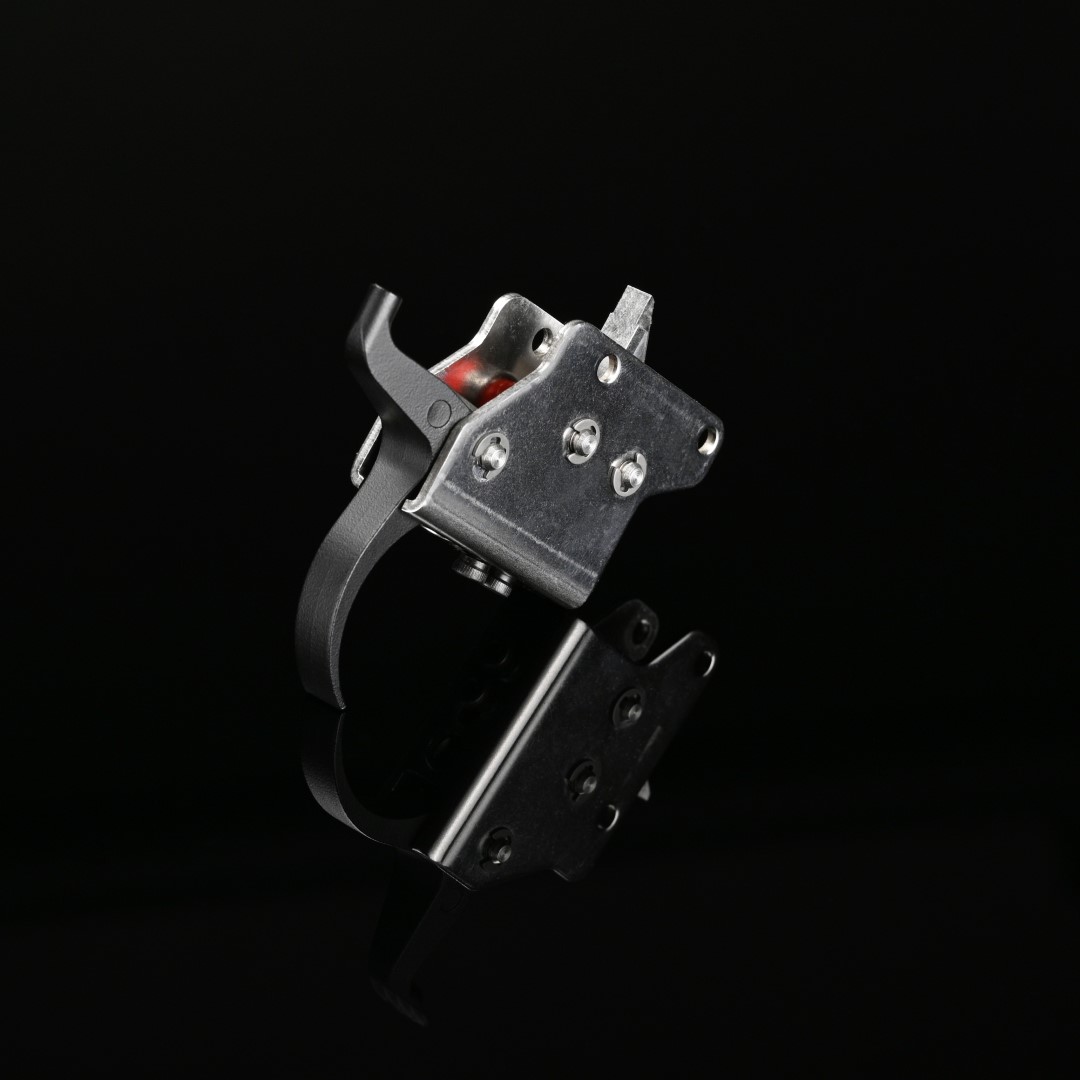

Trigger group:

  • Stainless steel piston sear
  • Stainless steel spring guide stopper
  • Stainless steel trigger box
  • Steel safety
  • 90° piston sear sliding on 2 ball bearings
  • Preload adjustment
  • Dual stage adjustment

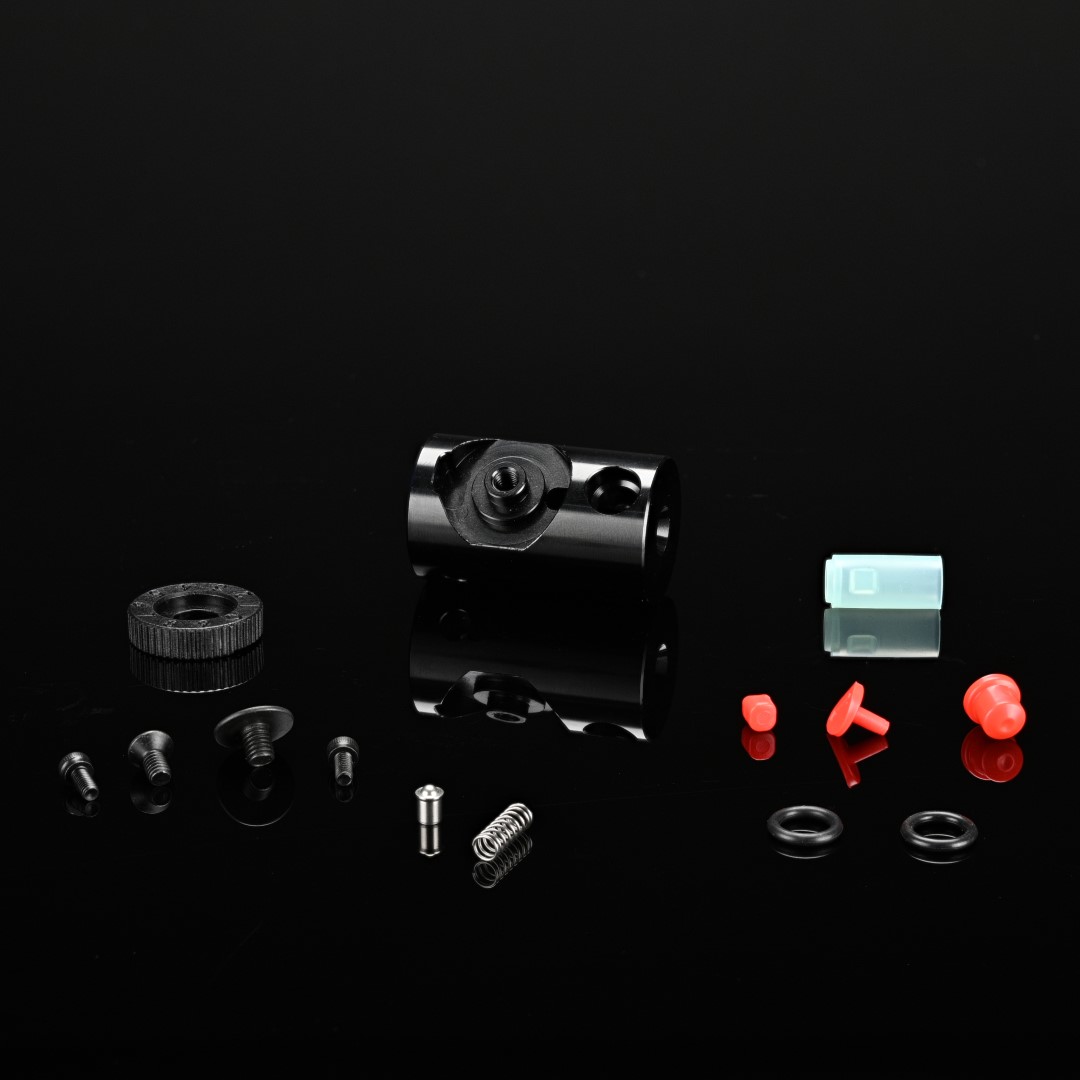

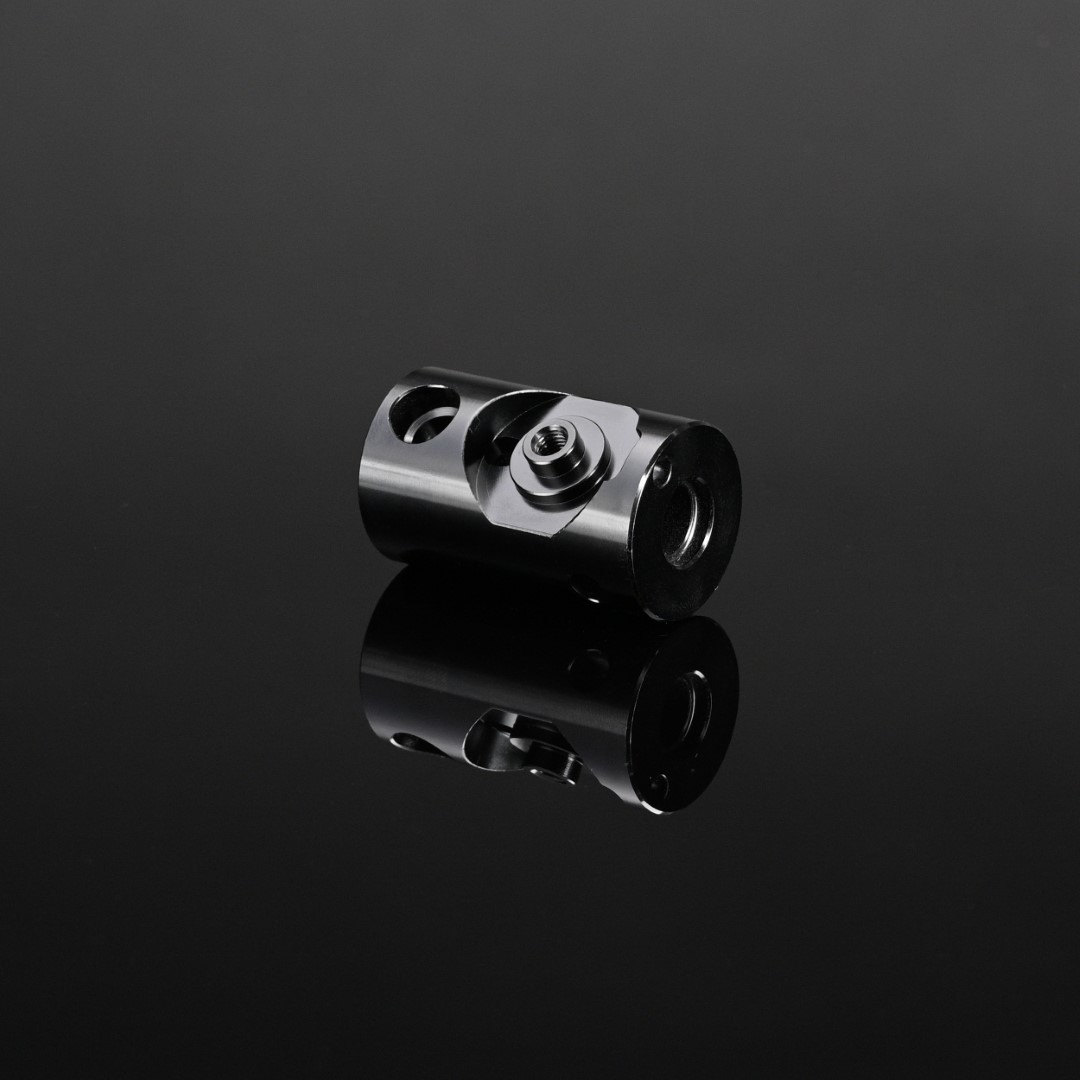

Hop-up:

  • CNC Aluminium body
  • TDC design, can be used no matter the scope used.
  • 50 indexed positions (by 15 µm increment)
  • AEG hop-up rubber compatible
  • 60° hopup rubber AEG
  • anti double-feed system

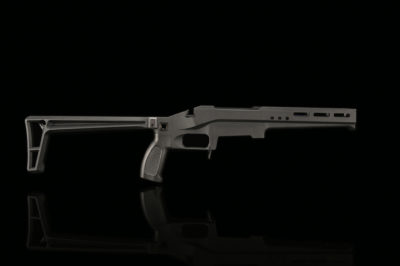

Stock:

  • Fiberglass reinforced Nylon construction

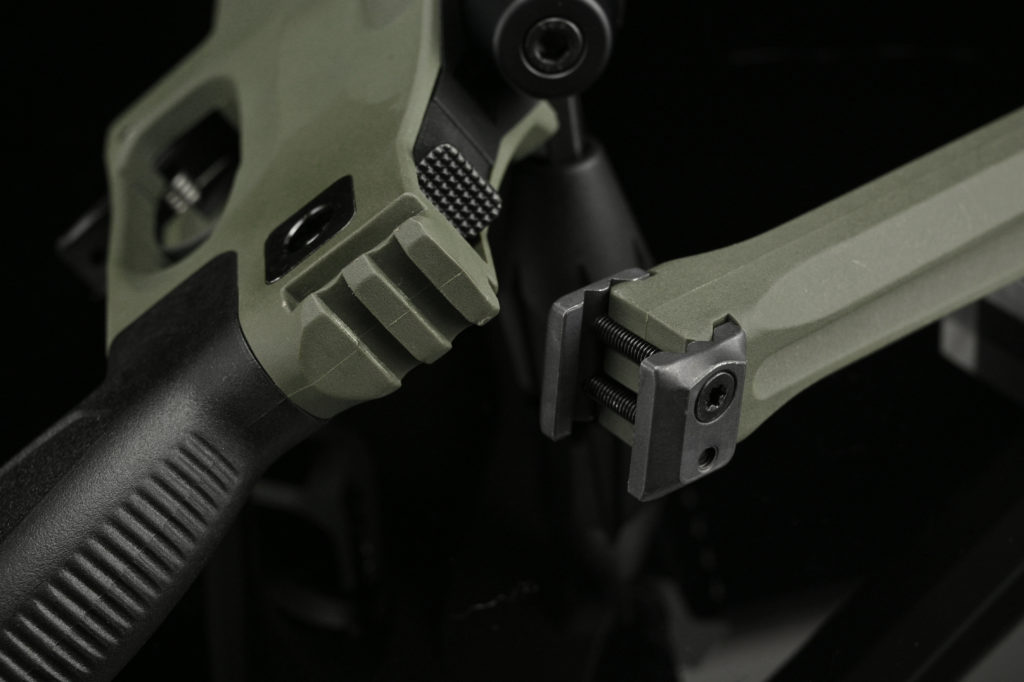

  • Picatinny stock attachment
  • 3 MLOK slots on each side
  • 2 MLOK slots under
  • 2 QD points for slings, central position, (optional back QD points, SBA-STK-39)

Available in 3 colours:

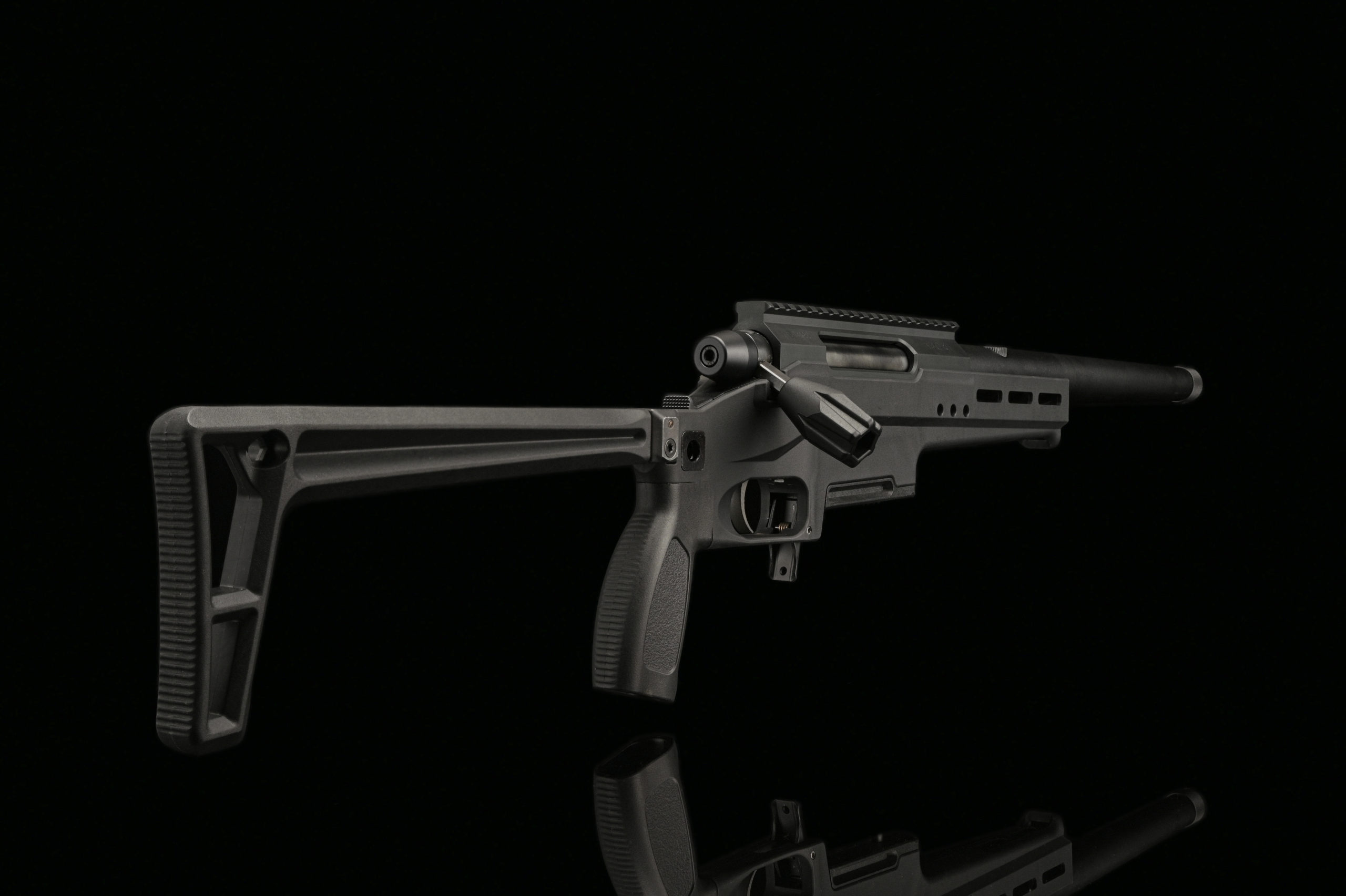

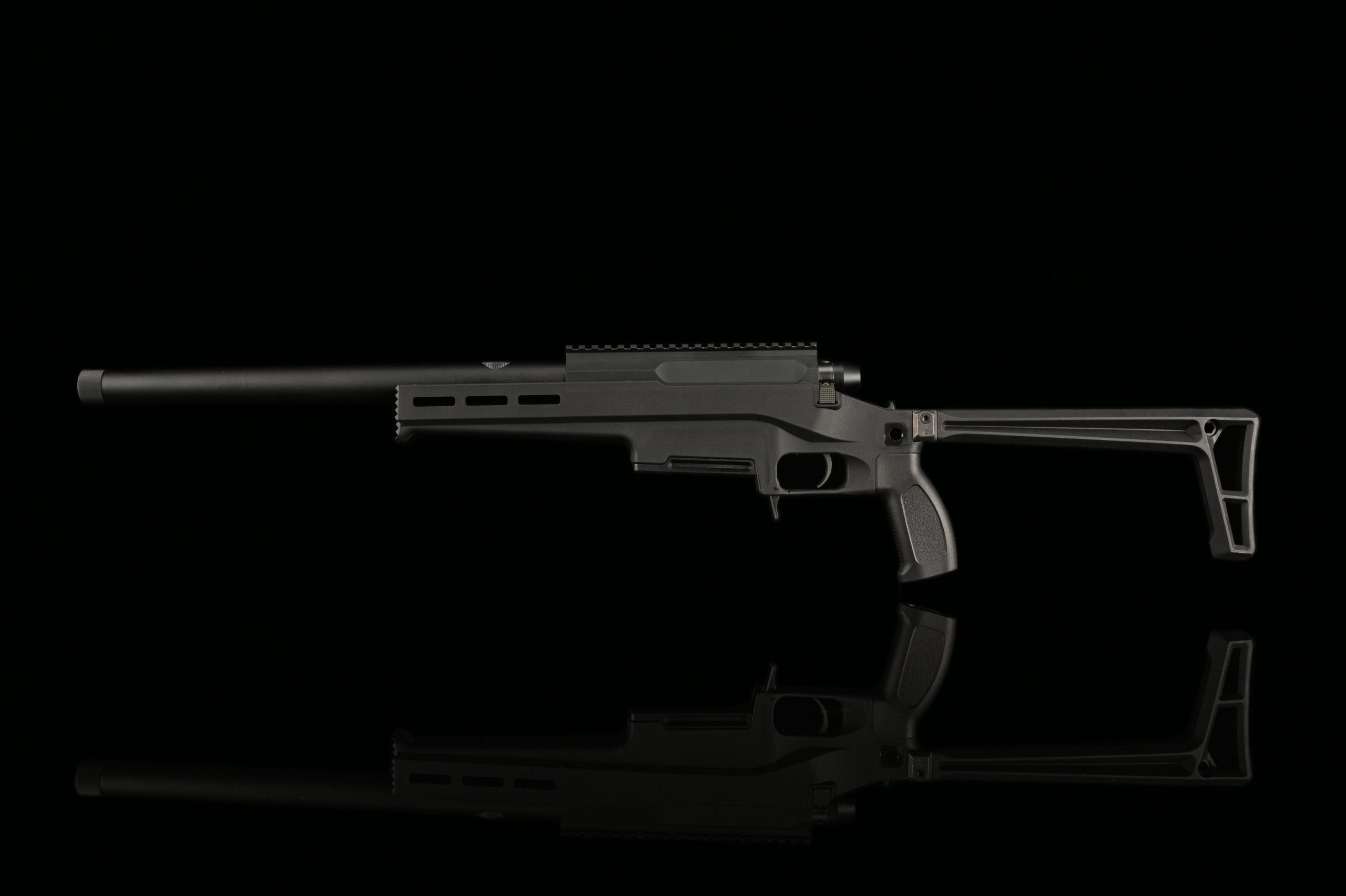

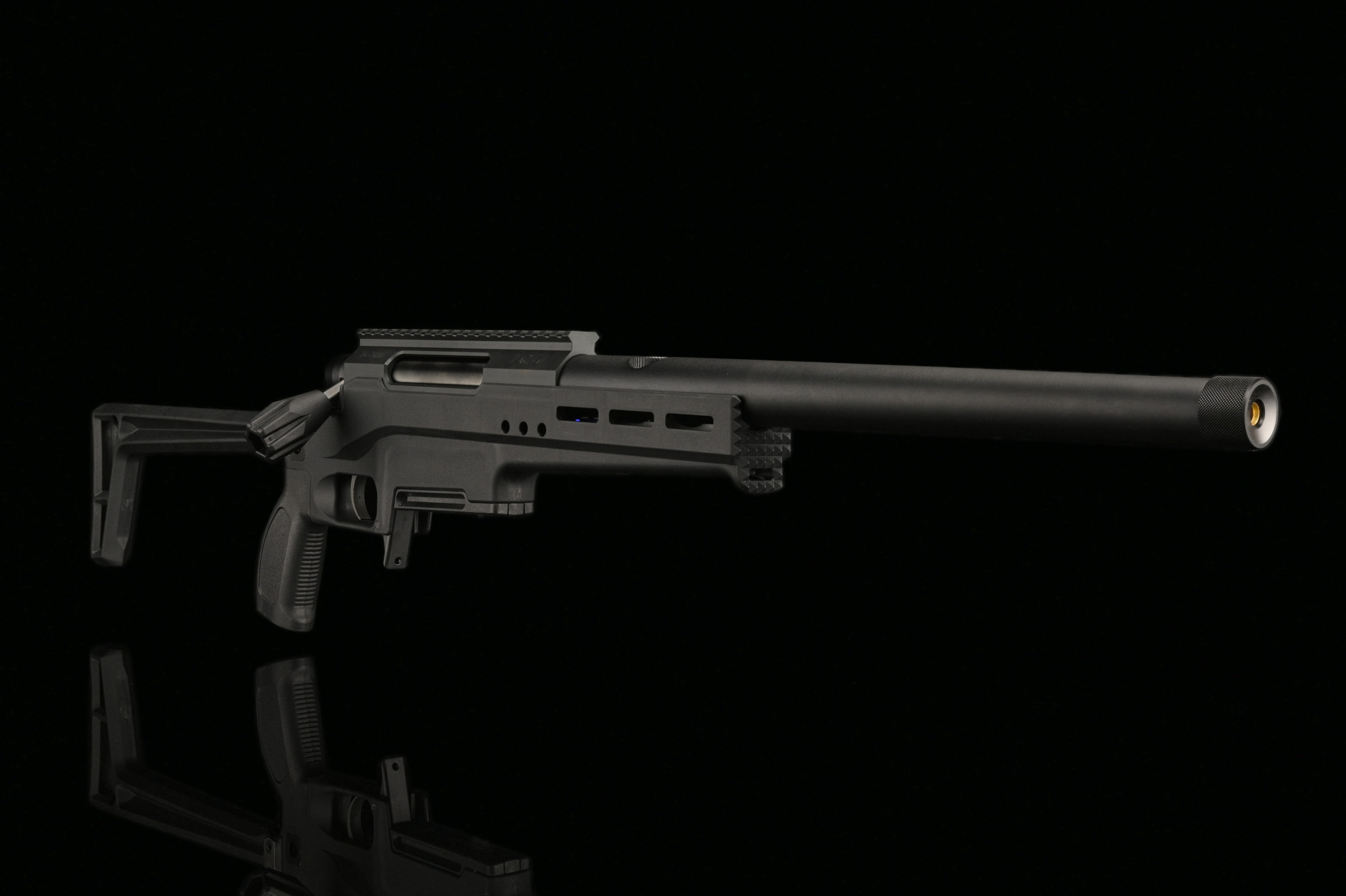

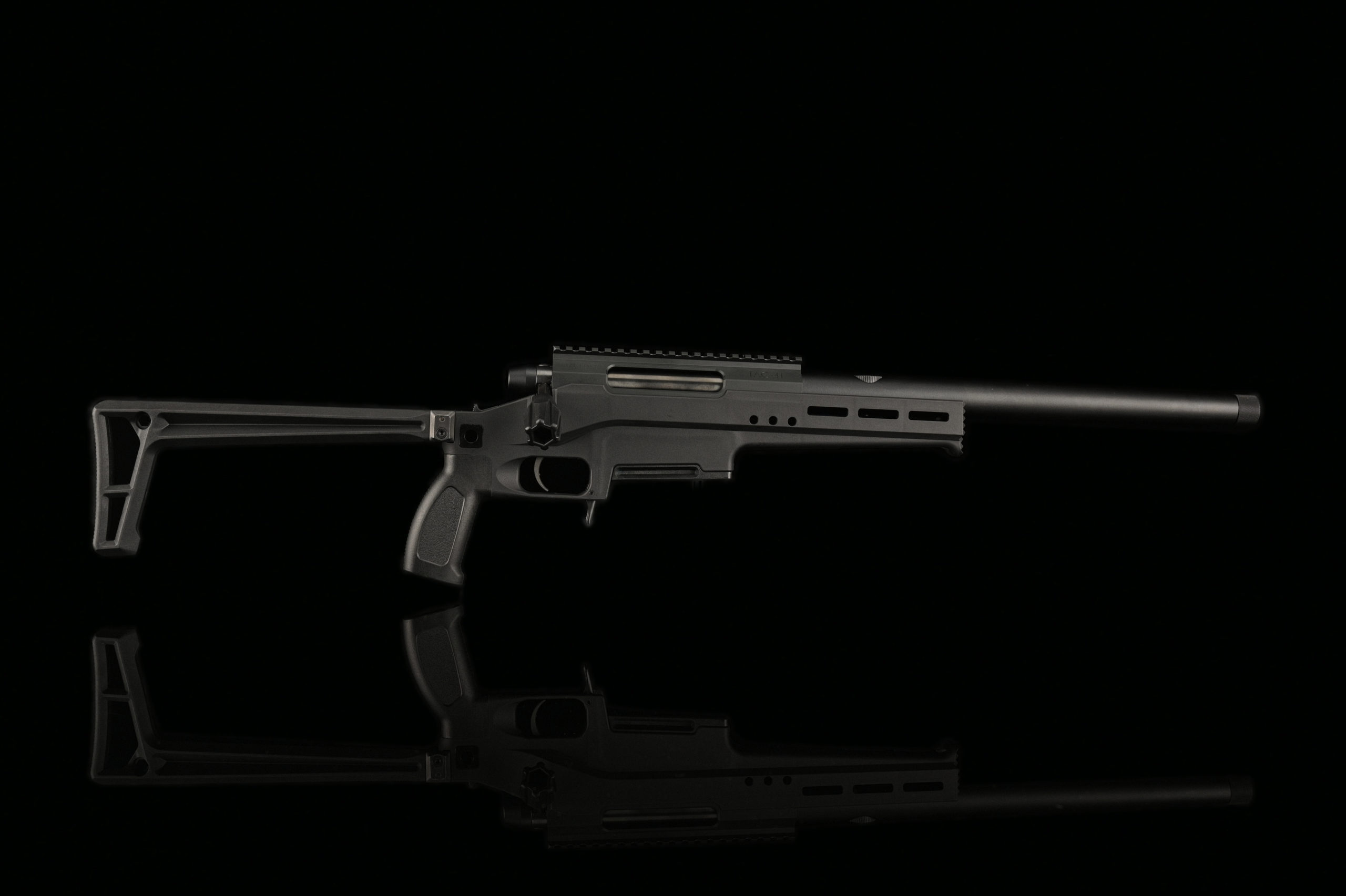

  • Black stock: SBA-BLT-32BK

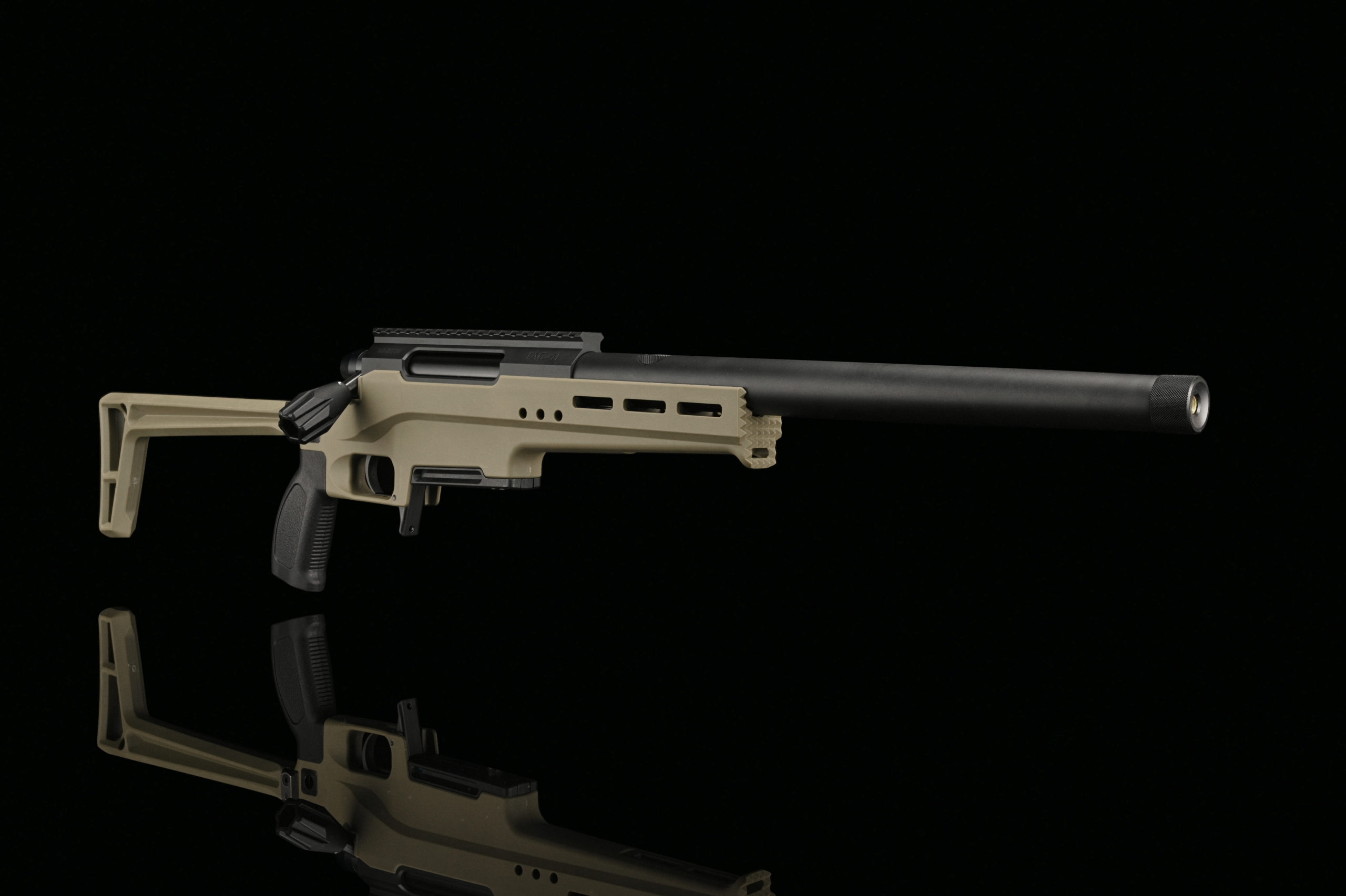

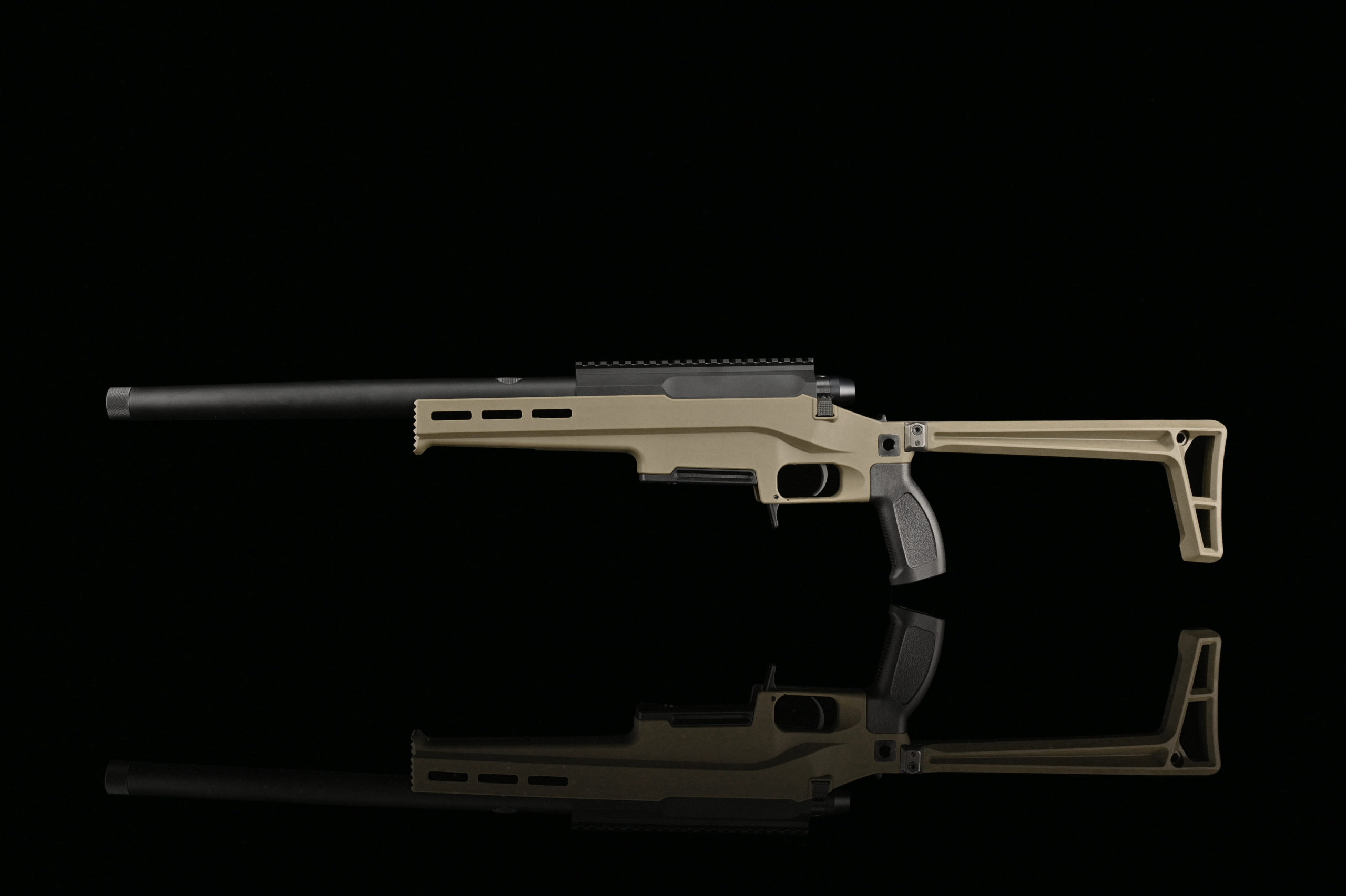

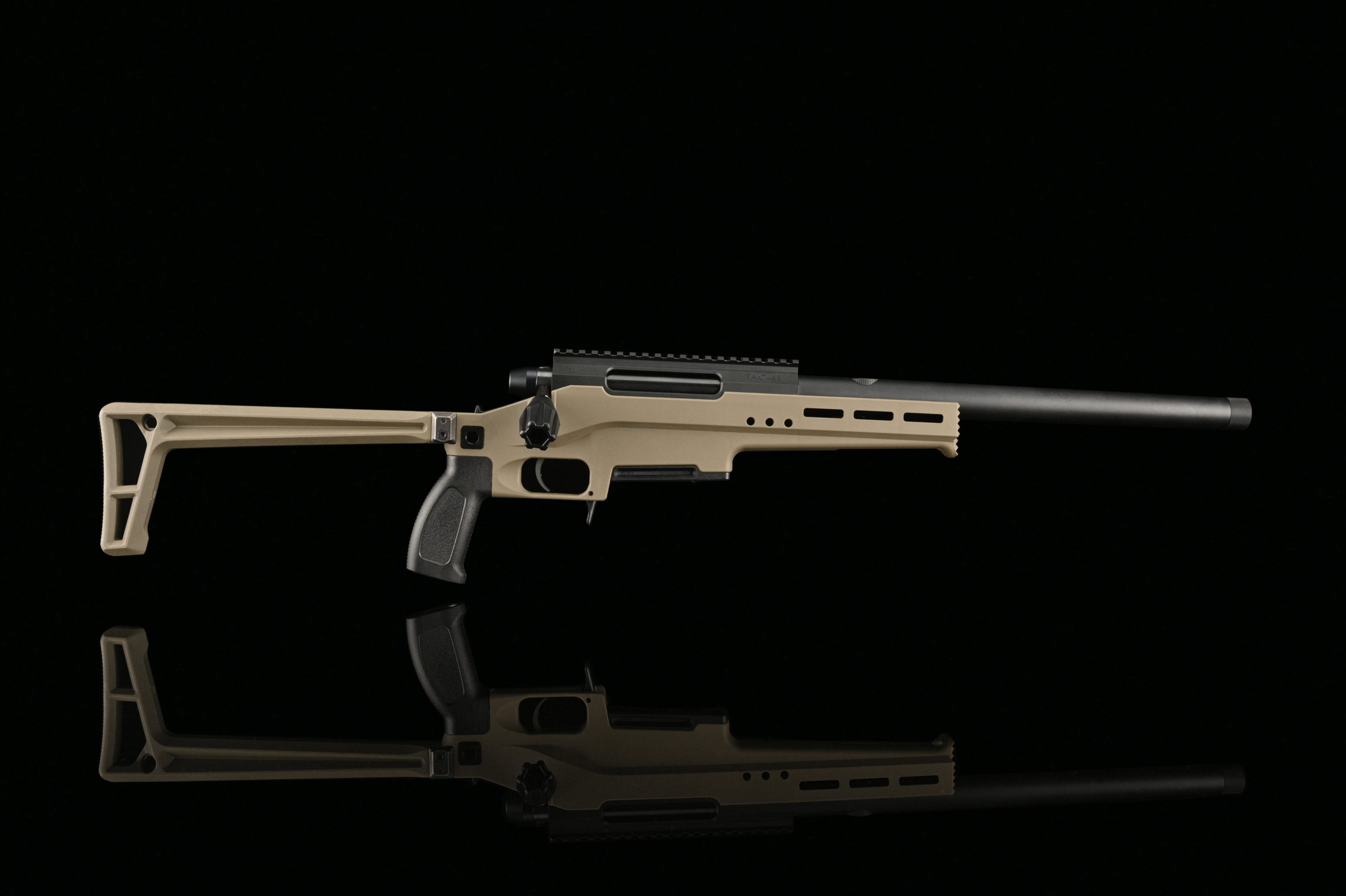

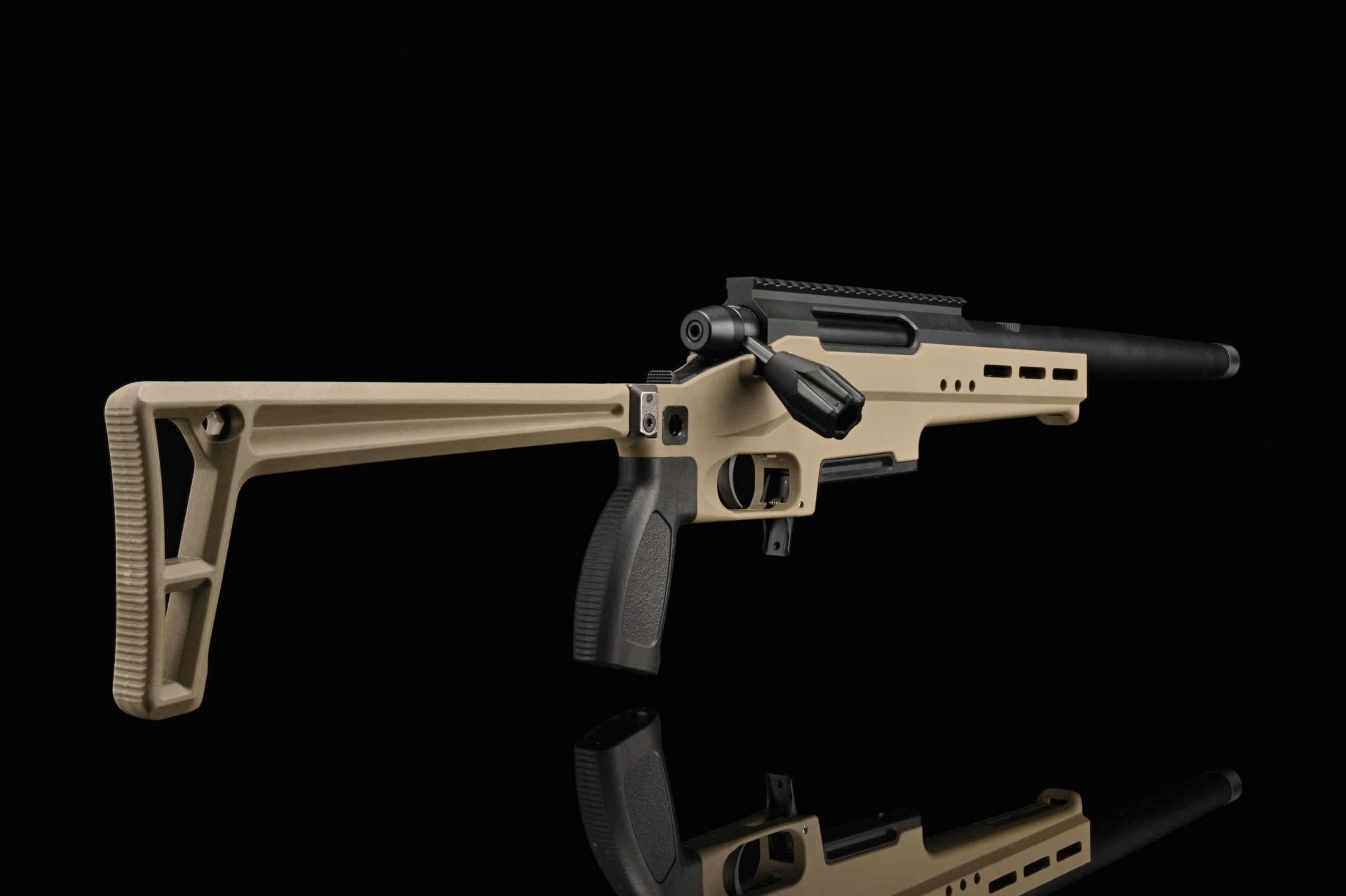

  • FDE stock: SBA-BLT-32FDE

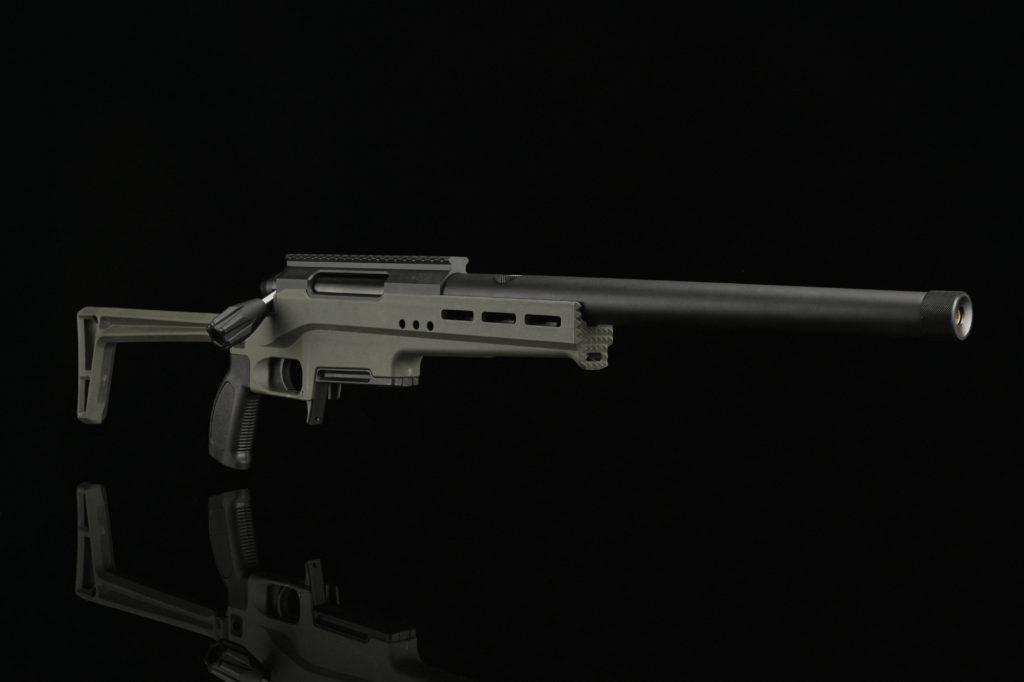

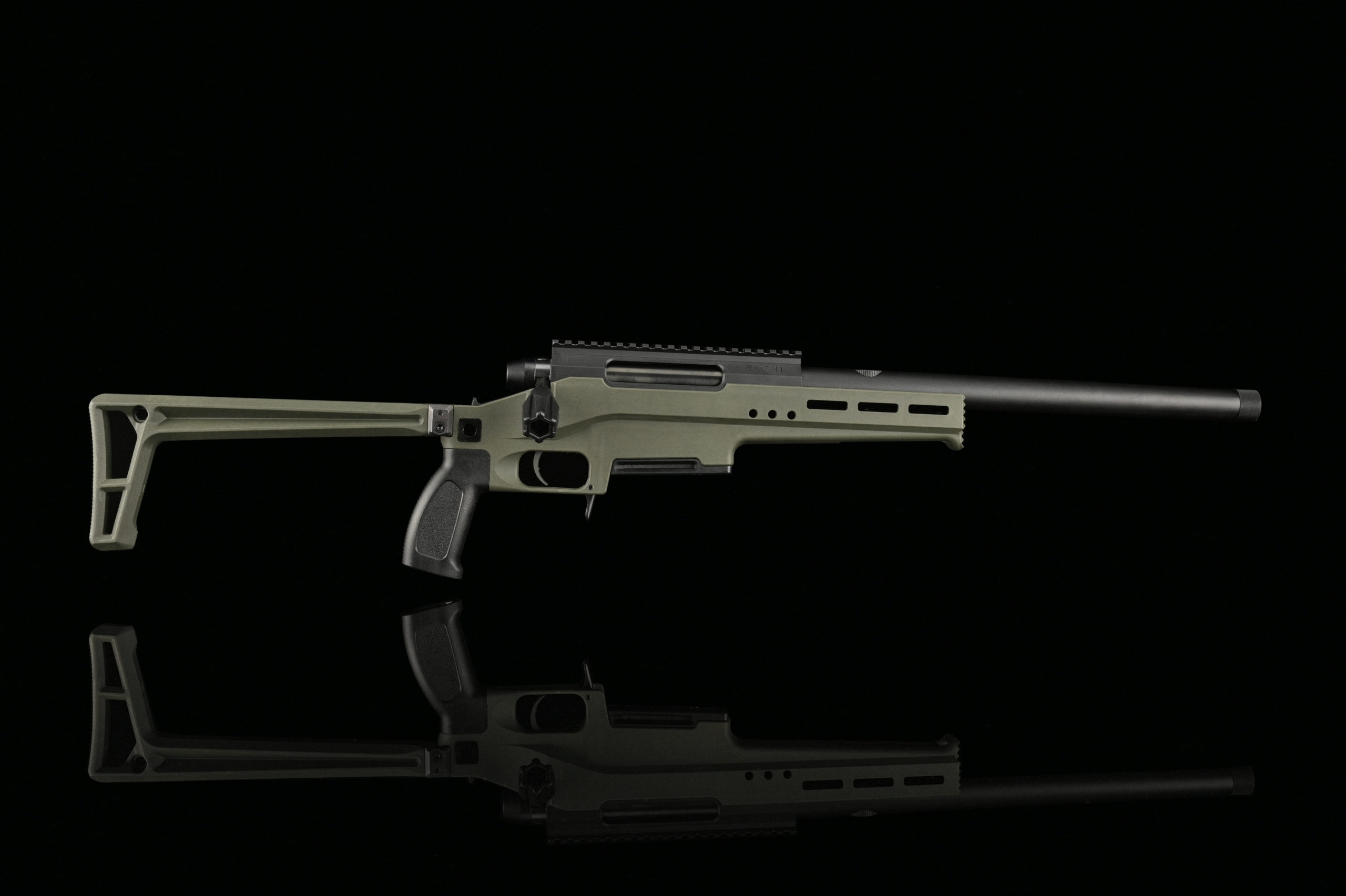

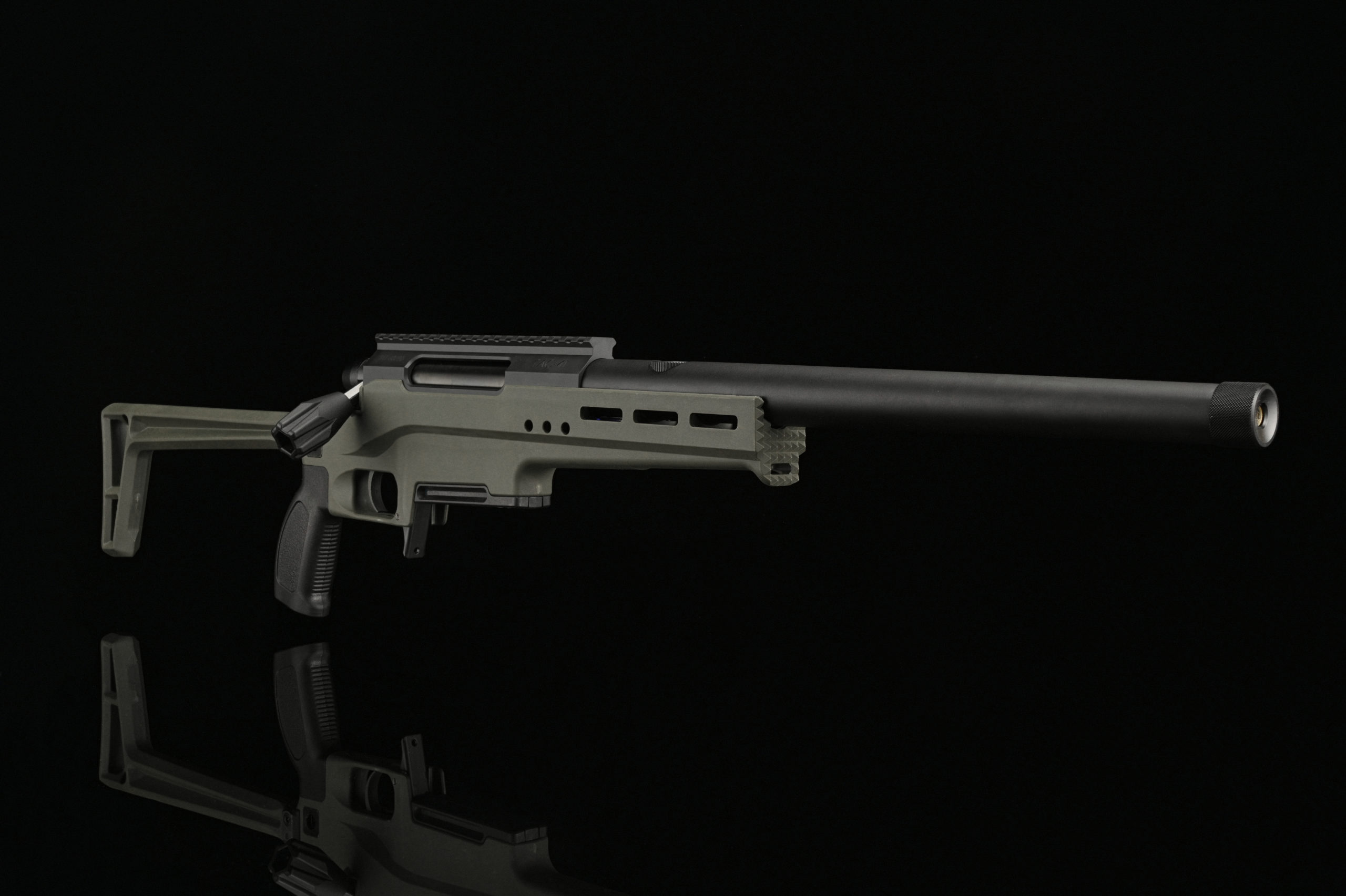

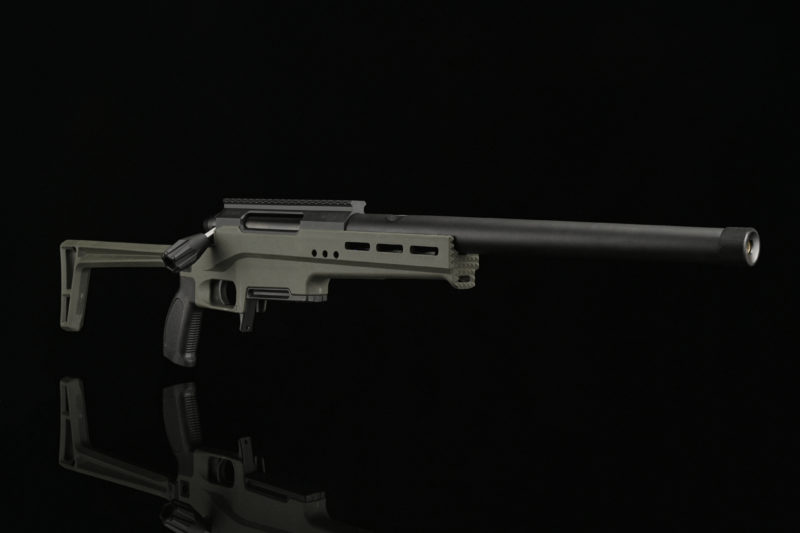

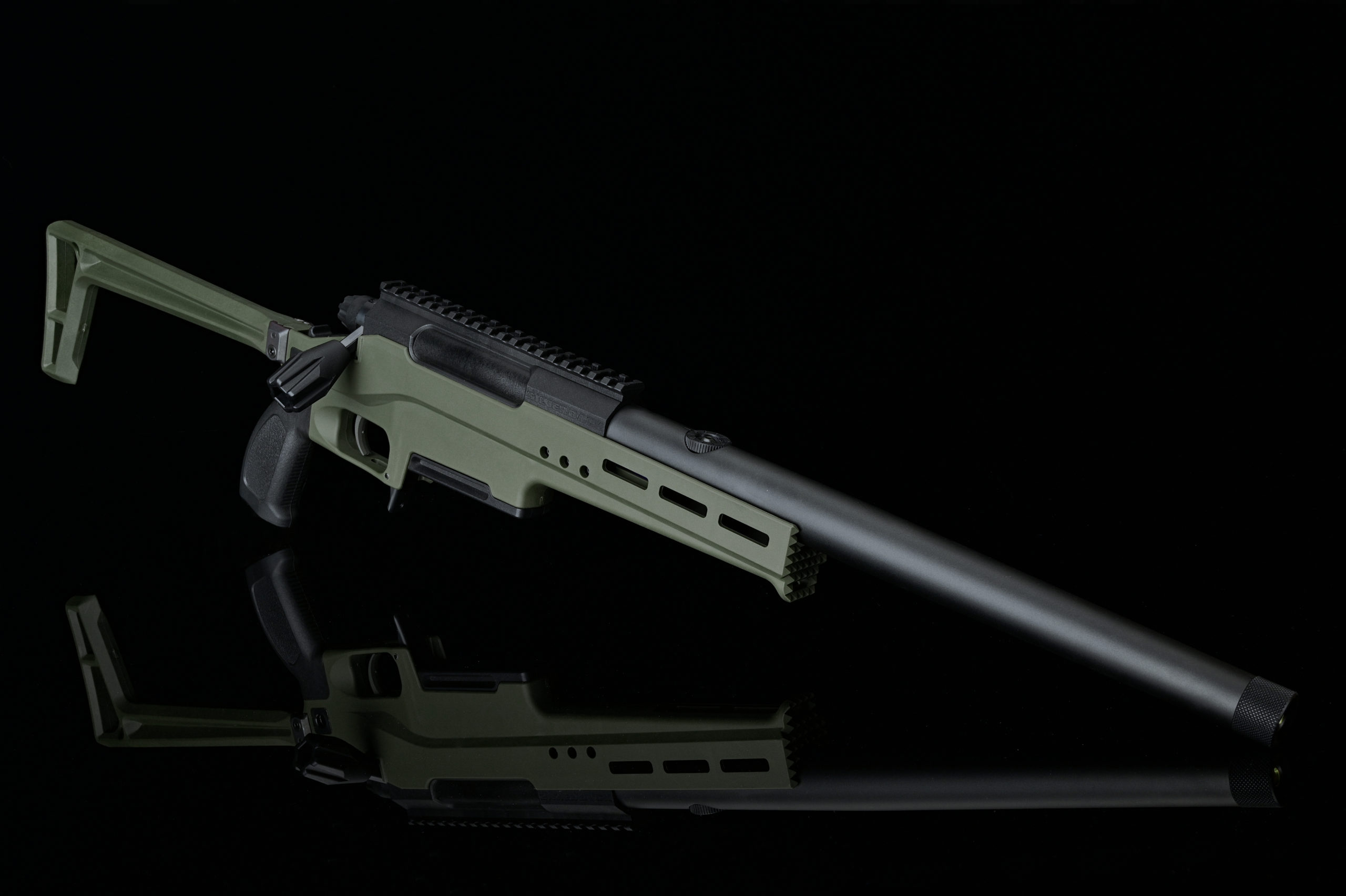

  • Green stock: SBA-BLT-32OD
